Acid and Alkali Resistant Industrial Ventilation Fan
The fan, made of durable PP (polypropylene) material, boasts high efficiency and low noise characteristics. It is designed to operate effectively in harsh environments.
Model Horsepower Performance Intake inlet Exhaust outlet Base Weight
unit HP*P CMM mmAq φ” mm mm KG
T-1/2-4 1/2*4 35 35 10” 200*200 300*500 28
T-1-4 1*4 45 55 10” 200*250 300*500 40
T-2-4 2*4 70 70 12” 250*300 300*550 57
T-3-4 3*4 80 90 14” 300*400 350*650 76
T-5-4 5*4 125 110 16” 350*450 500*800 93
T-7.5-4 7.5*4 160 120 20” 400*500 500*900 125
T-1/2-6 1/2*6 60 20 12” 200*250 300*500 58
T-1-6 1*6 85 30 14” 250*300 300*550 71
T-2-6 2*6 100 45 16” 300*400 350*650 82
T-3-6 3*6 150 50 20” 350*450 500*800 101
T-5-6 5*6 210 60 22” 400*500 500*900 129
T-7.5-6 7.5*6 260 80 24” 400*500 620*950 176

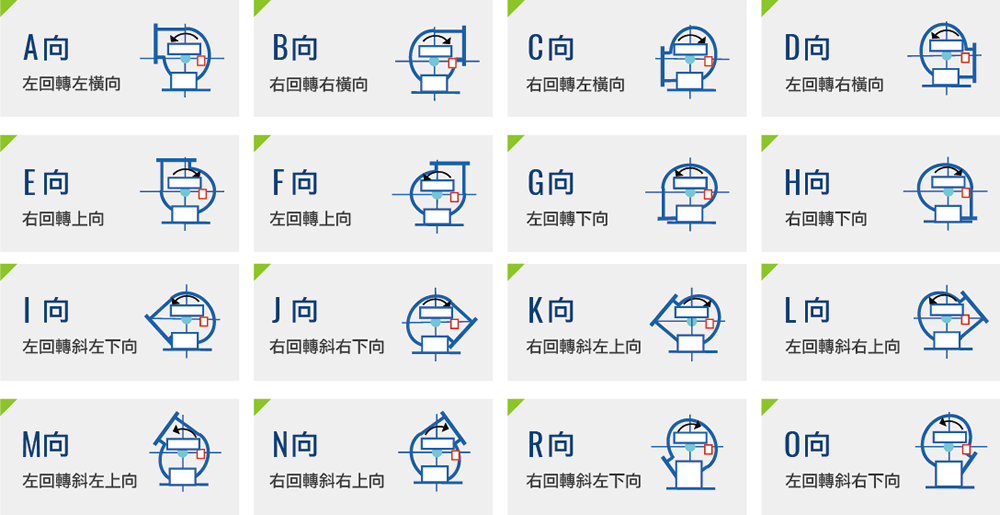

※ Determine the direction facing the motor
